MaxiVideo MV460

The MaxiVideo MV460, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features a 1920 x 1080 high resolution camera, a 3.5-inch 640 x 480 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours of continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.


  • image 0
  • image 0
  • image 0

• High resolution images and videos (1920 x 1080)


• 3.5-inch full color LCD display (640 x 480)


• 1-button quick image capture and video recording


• 70-degree field of view for expanded viewing angle


• Micro HDMI-output enables streaming to larger monitors


• Freeze-frame camera stills or video recording


• On-screen horizontal/vertical reverse


• Records and plays back images and video clips


• 7X digital zoom for increased viewing


• 8GB Micro SD card (included), supports up to 128GB


• Mini-USB cable (included) for uploading images and videos


• More than 10,000 lux, adjustable 10-level LED illumination


• Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use


• 1m (39.4") semi-rigid, flexible watertight cable


• Includes magnet, hook, and mirror cable accessories

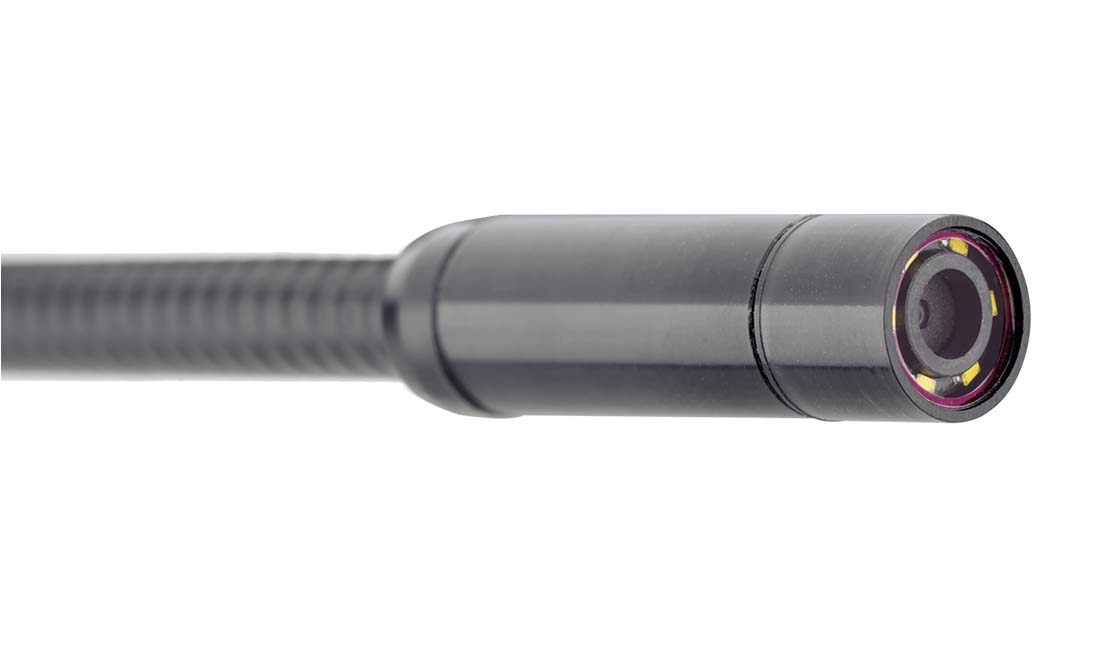

• 8.5mm (0.33’’) probe fits most spark plug holes


• Compatible with 5.5mm (0.22’’) camera head (not included)

Recommended UseIndoor
Optimal Viewing Distance0.79" to 2" (2 cm to 5 cm)
Image CaptureJPG images (1920 x 1080 pixels)
MP4 videos (1920 x 1080 pixels)
Display3.5" TFT LCD
Display Resolution640 x 480 pixels
Power SupplyBuilt-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested Battery LifeApproximately 4 hours of continuous use
Dimensions235 x 97 x 125mm (9.3" x 3.8" x 4.9" )
Weight

0.393kg (0.87lbs)

Recording MediumMicro SD card (8GB Standard/128GB Max)
Image ControlsZoom, low light vision
LightingFully adjustable LED
Cable Reach1m (39.4")
Imager Head8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
WaterproofTo a depth of 1m (39.4") (Imager heads and cable only)
Additional PortsTF, Mini USB, Micro HDMI
Operating TempMain unit: 14°F to 122°F (-10°C to 50°C);
Cable: 14°F to 140°F (-10°C to 60°C)
Storage Temp-4°F to 158°F (-20°C to 70°C)
Operating Humidity5% - 95% non-condensing

  • Autel MaxiVideo MV480 - Introduction



 MaxiVideo
MV400		MaxiVideo
MV500		MaxiVideo
MV480		MaxiVideo
MV460		MaxiVideo
MV160

 MaxiVideo
MV400		MaxiVideo
MV500		MaxiVideo
MV480		MaxiVideo
MV460		MaxiVideo
MV160
High resolution and full color digital LCD display3.5" (320×240)5” (1280×720)4.1" (1200×720)3.5'' (640 x 480)Smartphone-based
Record and play back high resolution still images and videos640×4801280×7201920 x 10801920 x 10801920 x 1080
Wireless monitor enables remote viewing--√------
Touchscreen for convenient operation--√------
Single button for quick photo and video recording----√√√
Add audio annotation for detail presentation--√√--√
On-screen photo editing and markup--√----√
Dual cameras see straight ahead or at a 90° angle--√√----
Digital zoom for detailed viewing5×5×7×7×7×
View objects as close as 1"√√√√√
BOn-screen horizontal/vertical reverse√√√√√
On-screen 90° clockwise rotation--√√√√
Built-in & adjustable LED illuminates viewing area√√√√√
HDMI port for monitor view--√√√--
Mini USB connector for uploading images and videos√√√√--
1 m long semi-rigid flexible watertight shaft√√√√√
Narrow probe diameter available in both 5.5 mm and 8.5 mm√8.5 mm8.5mm (5.5mm Optional)8.5mm (5.5mm Optional)8.5mm (5.5mm Optional)
Micro SD card slot for greater memory capacity√√√√--
Oil and scratch resistant tempered glass lens√√√√ √
Ergonomic and durable tool housing√√√√√
Built-in rechargeable Li-ion battery√√√√√
Multilingual support√√√√√
Water Resistant Camera head√√√√√
  • Description

    • • High resolution images and videos (1920 x 1080)


    • 3.5-inch full color LCD display (640 x 480)


    • 1-button quick image capture and video recording


    • 70-degree field of view for expanded viewing angle


    • Micro HDMI-output enables streaming to larger monitors


    • Freeze-frame camera stills or video recording


    • On-screen horizontal/vertical reverse


    • Records and plays back images and video clips


    • 7X digital zoom for increased viewing


    • 8GB Micro SD card (included), supports up to 128GB


    • Mini-USB cable (included) for uploading images and videos


    • More than 10,000 lux, adjustable 10-level LED illumination


    • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use


    • 1m (39.4") semi-rigid, flexible watertight cable


    • Includes magnet, hook, and mirror cable accessories


    • 8.5mm (0.33’’) probe fits most spark plug holes


    • Compatible with 5.5mm (0.22’’) camera head (not included)

  • Specifications
    • Recommended UseIndoor
    Optimal Viewing Distance0.79" to 2" (2 cm to 5 cm)
    Image CaptureJPG images (1920 x 1080 pixels)
    MP4 videos (1920 x 1080 pixels)
    Display3.5" TFT LCD
    Display Resolution640 x 480 pixels
    Power SupplyBuilt-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
    Tested Battery LifeApproximately 4 hours of continuous use
    Dimensions235 x 97 x 125mm (9.3" x 3.8" x 4.9" )
    Weight

    0.393kg (0.87lbs)

    Recording MediumMicro SD card (8GB Standard/128GB Max)
    Image ControlsZoom, low light vision
    LightingFully adjustable LED
    Cable Reach1m (39.4")
    Imager Head8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
    WaterproofTo a depth of 1m (39.4") (Imager heads and cable only)
    Additional PortsTF, Mini USB, Micro HDMI
    Operating TempMain unit: 14°F to 122°F (-10°C to 50°C);
    Cable: 14°F to 140°F (-10°C to 60°C)
    Storage Temp-4°F to 158°F (-20°C to 70°C)
    Operating Humidity5% - 95% non-condensing
  • Video
  • Comparison


    •  MaxiVideo
    MV400    		MaxiVideo
    MV500    		MaxiVideo
    MV480    		MaxiVideo
    MV460    		MaxiVideo
    MV160

     MaxiVideo
    MV400    		MaxiVideo
    MV500    		MaxiVideo
    MV480    		MaxiVideo
    MV460    		MaxiVideo
    MV160
    High resolution and full color digital LCD display3.5" (320×240)5” (1280×720)4.1" (1200×720)3.5'' (640 x 480)Smartphone-based
    Record and play back high resolution still images and videos640×4801280×7201920 x 10801920 x 10801920 x 1080
    Wireless monitor enables remote viewing--√------
    Touchscreen for convenient operation--√------
    Single button for quick photo and video recording----√√√
    Add audio annotation for detail presentation--√√--√
    On-screen photo editing and markup--√----√
    Dual cameras see straight ahead or at a 90° angle--√√----
    Digital zoom for detailed viewing5×5×7×7×7×
    View objects as close as 1"√√√√√
    BOn-screen horizontal/vertical reverse√√√√√
    On-screen 90° clockwise rotation--√√√√
    Built-in & adjustable LED illuminates viewing area√√√√√
    HDMI port for monitor view--√√√--
    Mini USB connector for uploading images and videos√√√√--
    1 m long semi-rigid flexible watertight shaft√√√√√
    Narrow probe diameter available in both 5.5 mm and 8.5 mm√8.5 mm8.5mm (5.5mm Optional)8.5mm (5.5mm Optional)8.5mm (5.5mm Optional)
    Micro SD card slot for greater memory capacity√√√√--
    Oil and scratch resistant tempered glass lens√√√√ √
    Ergonomic and durable tool housing√√√√√
    Built-in rechargeable Li-ion battery√√√√√
    Multilingual support√√√√√
    Water Resistant Camera head√√√√√
